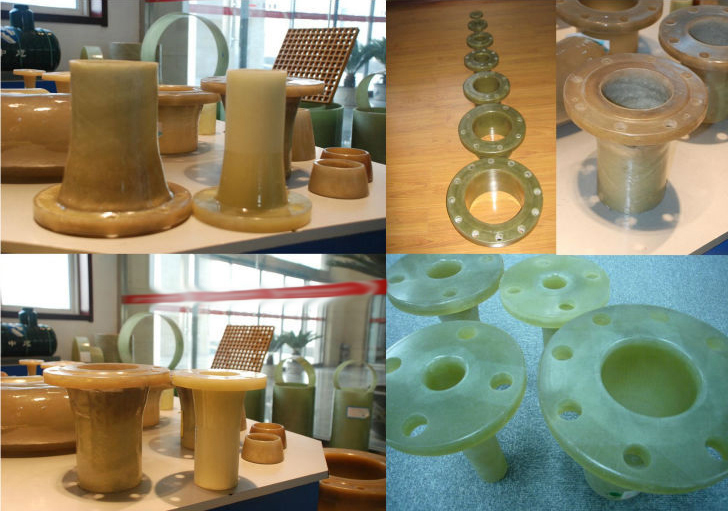

Fiberglass FRP GRP flange

Fiberglass flange as a kind of pipe fittings, it is manufactured by the hand lay-up, contact molding. In hand lay-up and contact molding processes veil and alternate layers of mat and woven roving saturated with resin are applied on the mold, and then after curing, demoulding, grinding, get the final product.

Product details

FRP GRP flange featured by compression resistance, easy installation, low cost, beautiful appearance, multiple choices of resins, reliable and safe after high temperature curing and pressure test.

Glass fiber reinforced plastics flange is a kind of detachable connecting part, widely used to FRP pipe and tank process.

Flange Standard: GB standard, ANSI standard, EN standard, JIS standard, DIN standard, and can also be manufactured according to drawings.

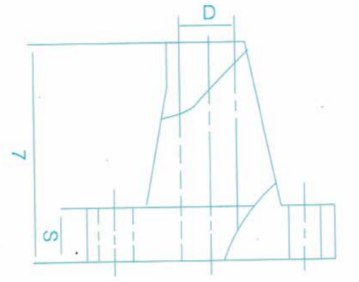

Flange specification:

D	0.6MPa		1.0MPa		1.6MPa
D	S	L	S	L	S	L
10	12	100	15	100	15	100
15	12	100	15	100	15	100
20	12	100	15	100	18	100
25	12	100	15	100	18	100
32	15	100	18	100	20	100
40	15	100	18	100	22	100
50	15	100	20	100	22	150
65	15	100	20	150	25	160
80	18	150	22	160	28	230
100	20	150	25	180	30	250
125	22	200	25	230	33	300
150	22	200	28	280	38	370
200	25	220	33	360	48	500
250	28	280	42	420	55	620
300	32	300	48	500
350	35	400	54	570
400	40	420
450	45	480
500	50	540
600	52	640
