Whole set of FRP profile production equipment

FRP Pultrusion Machine Quick Details

Place of original: Hebei, China

Traction force: 5-15T 20-30T 35-50T

Material: Q235

Application: Production many kinds of profiles

Control system: PLC

OEM: Yes

Cutting machine type: Automatic

Keywords: Fiberglass pultrusion machine/Pultrusion machine/FRP pultruder

FRP Pultrusion Profile Machine Description:

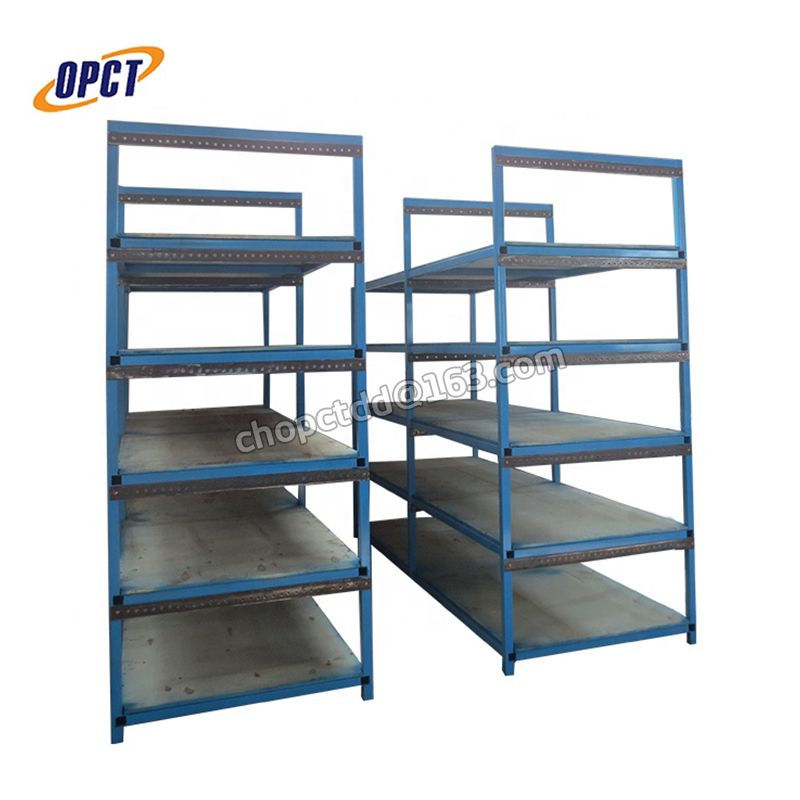

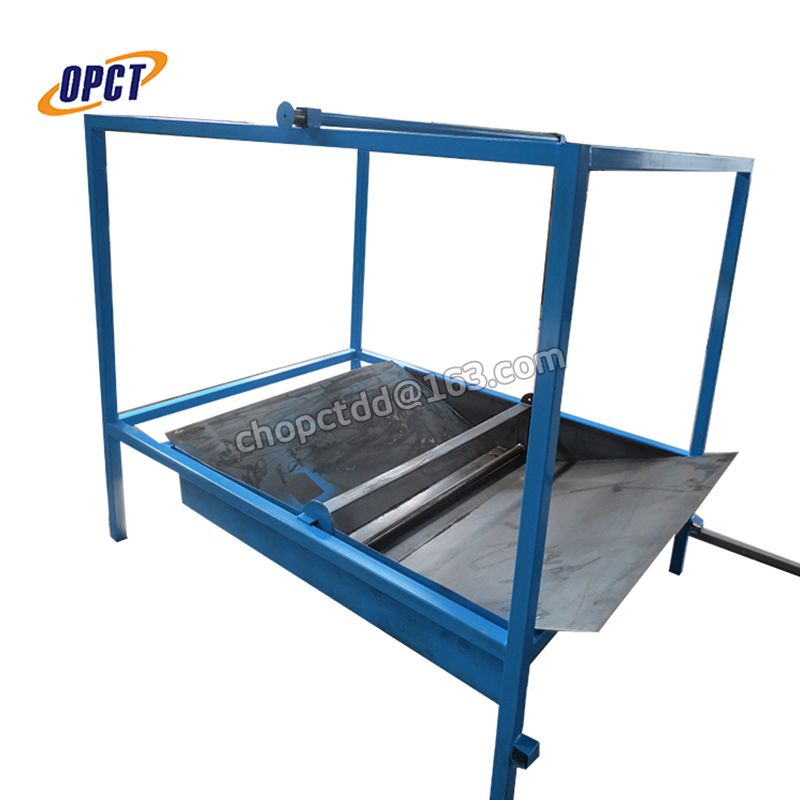

Pultrusion process is a kind of process method for continuous produce the FRP pultruded profiles which have same section and same dimensions. Make this process device and equipment is FRP pultrusion equipment.This system consist of roving racks, resin bath, mould calibrating table, to-and-fro traction machine, cutting saw, racks for finished products and control system.The machine can produce various FRP Pultrusion Profiles only need different molds, the profiles include Square tubes, Rectangular tubes, Round tubes, L Angles, I Beams, C Channels, and Rod fiberglass pultruded profile etc.

Fiberglass Pultrusion Machine Product Show:

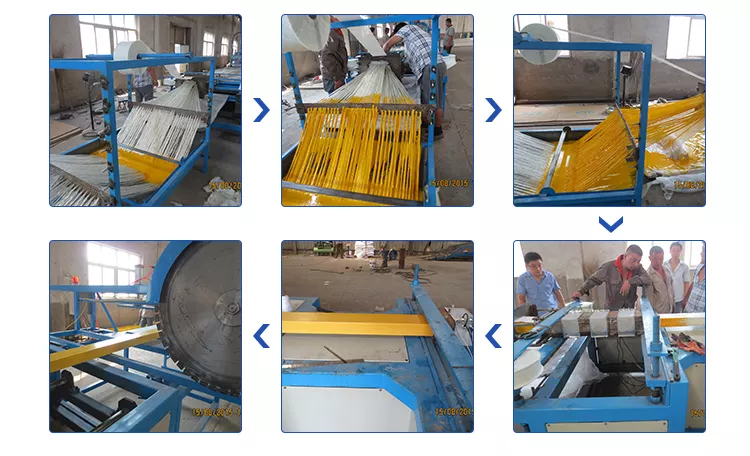

FRP Pultruder Working Process:

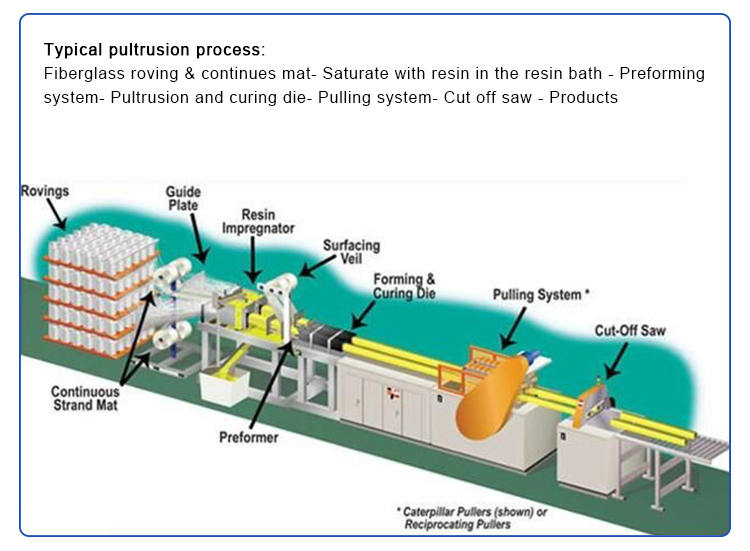

Pultrusion is a continuous molding process that can produce FRP products of infinitely long constant sections. The raw material contains liquid resin mixture(including resin, filler and special addictive)and reinforced fiber(including fiberglass roving, mat and fabric). Reinforced fiber is pulled by traction device, wetted by resin mixture, extruded into a certain shape through the heated die and released into a constant FRP profiles.

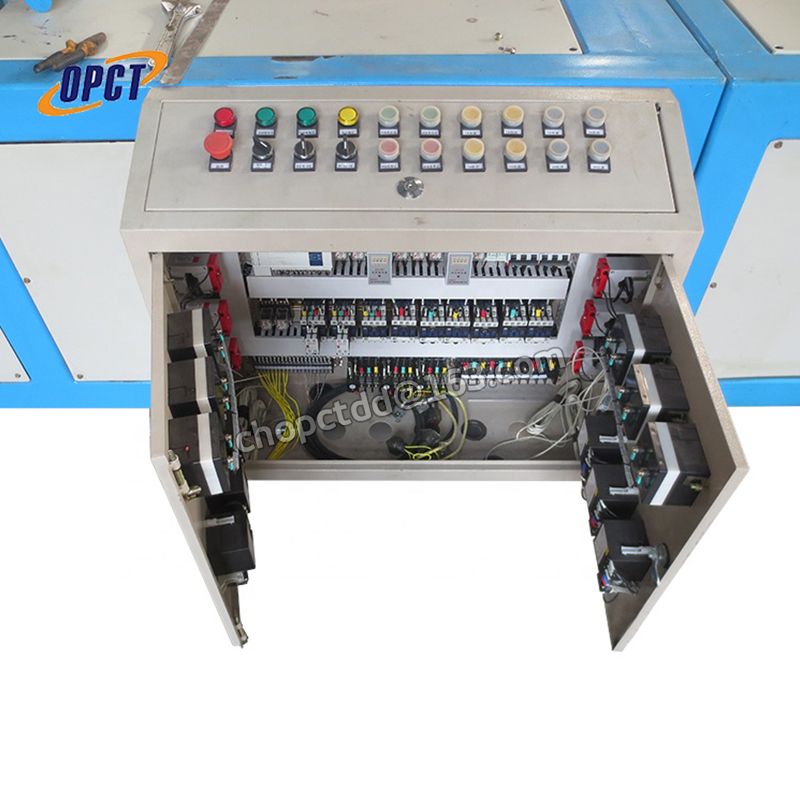

Hydraulic type pultrusion machine is controlled by PLC, which adopts hydraulic pressure type to-and-fro as traction force with pneumatic length-fixing cutting.

FRP Pultruding Equipment feature:

Can adjust the content of strength material and the product type according to the requirement.

With two hydraulic pressure system, the machine has strong ability of anti-interference.

It can produce complex shape product, meet various requirements.

Good product quality and high utilization rate of raw materials.

It can realize 24-hour continuous production.

FRP GRP Pultrusion Production Line working:
