FRP GRP horizontal type chemical storage tank

Product details

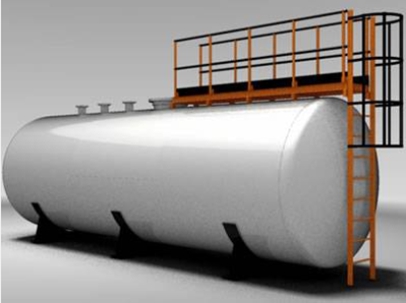

FRP Horizontal tank, also called FRP horizontal vessel, is a device composed by leakage-resistant and anti-corrosion inner layer, firm structural layer, anti-aging outer layer, heads, nozzles, and saddle supports. FRP (Fiberglass Reinforced Plastic), its raw material, is a special kind of plastic which has been reinforced with fiberglass, similar to the way that rebar strengthens concrete. FRP Horizontal tank is a perfect choice when you are in need for storage tank but have a vertical height limitation. By using filament winding method, the material of horizontal FRP tank can be reinforced to adjust its physicochemical ability and meet different requirements.

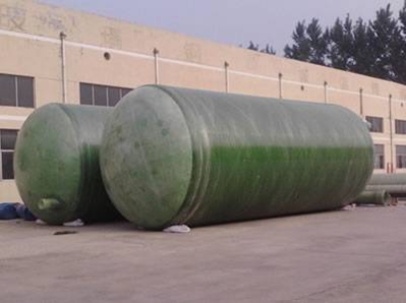

Horizontal FRP tank is made by using filament winding method.

Horizontal FRP tank is a perfect choice as a storage vessel

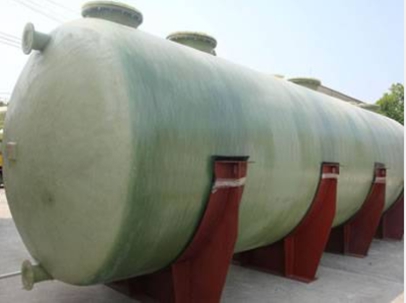

Horizontal FRP tank can be manufactured in different dimensions as your requirements

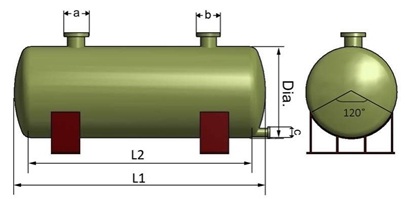

No.	Volume (m³)	Numbers of saddle support	Main size						Thickness (mm)	Weight (kg)
No.	Volume (m³)	Numbers of saddle support	Dia	L1	L2	a	b	c	Thickness (mm)	Weight (kg)
01	1	2	1000	1460	960	500	25	50	10	280
02	2	2	1000	1990	1400	500	25	50	12	295
03	3	2	1000	2200	1700	500	25	50	12	297
04	4	2	1200	2280	1680	500	25	80	15	480
05	5	3	1400	2770	2070	500	25	80	18	650
06	6	2	1600	3270	2470	500	25	80	18	750
07	7	3	1600	3770	2970	500	25	80	18	780
08	8	3	1800	4270	3370	500	25	80	20	840
09	9	3	1800	4760	3860	500	40	80	20	920
10	10	3	1800	5260	4360	500	40	80	20	1060
11	16	3	1800	6120	5220	500	40	80	20	1500
12	20	4	2200	6500	5400	500	50	100	25	2273
13	25	4	2200	6800	5700	500	50	100	30	2718
14	30	4	2300	7900	6750	500	50	100	32	4032
15	40	3	2600	8310	7010	500	50	100	35	5086
16	50	4	2800	9870	8470	500	50	100	40	6727
17	63	3	2800	9990	8590	500	50	100	45	8797
18	70	4	3000	10460	8690	500	50	100	48	10012
19	80	4	3000	11880	10380	600	50	100	50	11463
20	100	4	3000	14550	13050	600	50	100	50	13863

Density of material: 1.7 - 2.0 g/cm³

Roughness coefficient: 0.0084

Colors: oyster white, bluish white, ivory, dark green and upon your request

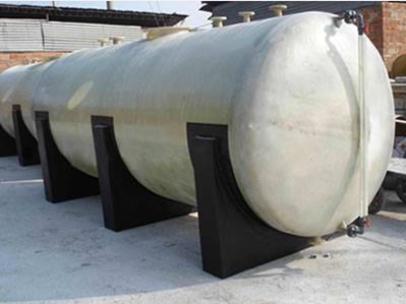

FRP Horizontal tank can be sold with some accessories depending on the needs of our customers

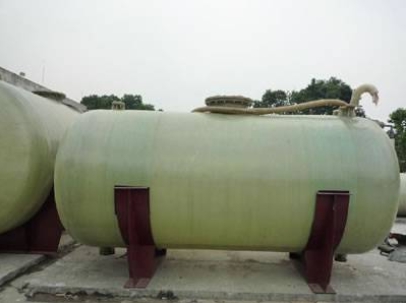

FRP Horizontal tank is made of a special kind of plastic which has been reinforced with fiberglass

Features

Excellent physicochemical performance & durability: FRP Horizontal tank has high strength, good corrosion resistance and thermal insulation

Long service life & low maintenance cost: FRP Horizontal tank has smooth inner wall which is non-toxic, odorless and easy to clean

Wide range of application: FRP Horizontal tank is widely used in many different fields for storing kinds of liquid

Light weight: FRP Horizontal tank is made of fiber reinforce plastic which is lightweight

Application

Because of the notable advantage of its material, FRP horizontal tank is gradually taking the place of metal tanks in many field. Horizontal FRP tank is supplied for both above and underground applications and has an extensive usage in metallurgic industry, chemical industry, medical treatment industry, light industry, construction industry, textile industry, food industry and electroplating waste water treatment, etc.
