Fiberglass FRP GRP cable tray

FRP GRP Cable Tray is designed and manufactured from a selection of high-quality fiberglass reinforced resins to form a strong composite that resists chemicals, flame retardants and UV rays. FRP GRP Cable Tray is widely used in electrical and instrumentation installations.

FRP GRP Cable Tray

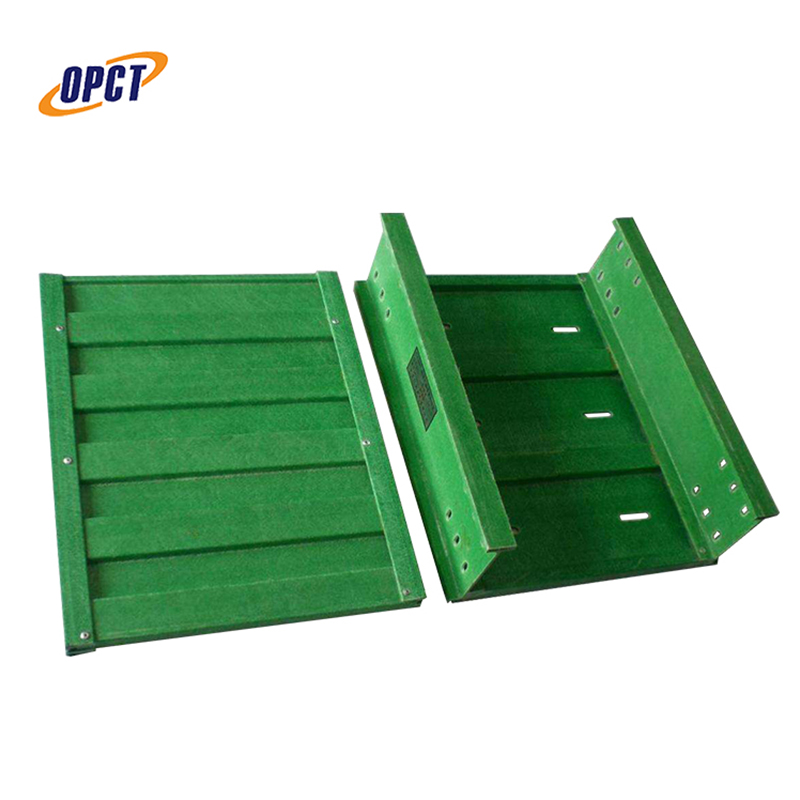

The FRP ladder cable tray shall consist of two longitudinal side rails to which the transverse/horizontal rungs are mechanically fastened and glued. There should be 150,250,300 mm between FRP steps. Each FRP ladder side rail should have holes on both ends for securing the FRP connector plate and hardware. The FRP ladder structure should have a high degree of finish for easy handling and laying of cables without damaging them.

Fiberglass reinforced plastic (FRP) anti-corrosion cable bridge or tray is made of glass fiber, epoxy resin and other special materials, it has reasonable mechanical structure, light weight,high strength, strong corrosion resistance, flame retardance, aging resistance and good insulation performance, it can be used in a large range of temperature and the environments of high humidity, heavy acid and or heavy alkali. The service life is 5-6 times of the steel bridge, the installation distance of one ton of FRP cable bridge or tray is 1.5 times of the steel bridge with same specification and same weight.FRP cable bridge can be overhead laying; erected under the beam or floor slab,can be fixed laterally by indoor and outdoor walls, posts, tunnels, cable trench walls, can also be installed in the open air.

Trough type FRP bridge is a fully enclosed FRP bridge. It is suitable for laying control cables of computers, communication cables, thermocouple cables and other highly sensitive systems. It has good effect on shielding interference of control cables and cable protection in heavy corrosion environment.
